InputActions Class Reference

Provides programmatic access to InputActionAsset, InputActionMap, InputAction and InputControlScheme instances defined in asset "Assets/DeulPie/ExtraInk/Input/InputActions.inputactions". More...

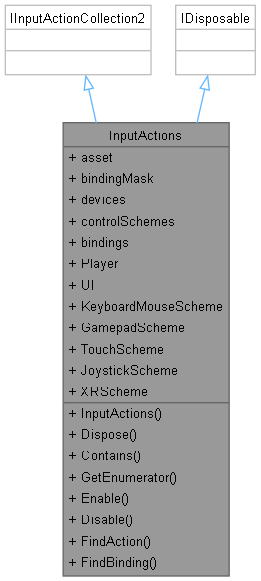

Inheritance diagram for InputActions:

Collaboration diagram for InputActions:

Classes
interface	IPlayerActions
	Interface to implement callback methods for all input action callbacks associated with input actions defined by "Player" which allows adding and removing callbacks. More...
interface	IUIActions
	Interface to implement callback methods for all input action callbacks associated with input actions defined by "UI" which allows adding and removing callbacks. More...
struct	PlayerActions
	Provides access to input actions defined in input action map "Player". More...
struct	UIActions
	Provides access to input actions defined in input action map "UI". More...

Public Member Functions
	InputActions ()
	Constructs a new instance.
void	Dispose ()
	Destroys this asset and all associated InputAction instances.
bool	Contains (InputAction action)
IEnumerator< InputAction >	GetEnumerator ()
void	Enable ()
void	Disable ()
InputAction	FindAction (string actionNameOrId, bool throwIfNotFound=false)
int	FindBinding (InputBinding bindingMask, out InputAction action)

Properties
InputActionAsset	asset [get]
	Provides access to the underlying asset instance.
InputBinding?	bindingMask [get, set]
ReadOnlyArray< InputDevice >?	devices [get, set]
ReadOnlyArray< InputControlScheme >	controlSchemes [get]
IEnumerable< InputBinding >	bindings [get]
PlayerActions	Player [get]
	Provides a new PlayerActions instance referencing this action map.
UIActions	UI [get]
	Provides a new UIActions instance referencing this action map.
InputControlScheme	KeyboardMouseScheme [get]
	Provides access to the input control scheme.
InputControlScheme	GamepadScheme [get]
	Provides access to the input control scheme.
InputControlScheme	TouchScheme [get]
	Provides access to the input control scheme.
InputControlScheme	JoystickScheme [get]
	Provides access to the input control scheme.
InputControlScheme	XRScheme [get]
	Provides access to the input control scheme.

Detailed Description

Provides programmatic access to InputActionAsset, InputActionMap, InputAction and InputControlScheme instances defined in asset "Assets/DeulPie/ExtraInk/Input/InputActions.inputactions".

This class is source generated and any manual edits will be discarded if the associated asset is reimported or modified.

using namespace UnityEngine;
using UnityEngine.InputSystem;

// Example of using an InputActionMap named "Player" from a UnityEngine.MonoBehaviour implementing callback interface.
public class Example : MonoBehaviour, MyActions.IPlayerActions
{
    private MyActions_Actions m_Actions;                  // Source code representation of asset.
    private MyActions_Actions.PlayerActions m_Player;     // Source code representation of action map.

    void Awake()
    {
        m_Actions = new MyActions_Actions();              // Create asset object.
        m_Player = m_Actions.Player;                      // Extract action map object.
        m_Player.AddCallbacks(this);                      // Register callback interface IPlayerActions.
    }

    void OnDestroy()
    {
        m_Actions.Dispose();                              // Destroy asset object.
    }

    void OnEnable()
    {
        m_Player.Enable();                                // Enable all actions within map.
    }

    void OnDisable()
    {
        m_Player.Disable();                               // Disable all actions within map.
    }

    #region Interface implementation of MyActions.IPlayerActions

    // Invoked when "Move" action is either started, performed or canceled.
    public void OnMove(InputAction.CallbackContext context)
    {
        Debug.Log($"OnMove: {context.ReadValue<Vector2>()}");
    }

    // Invoked when "Attack" action is either started, performed or canceled.
    public void OnAttack(InputAction.CallbackContext context)
    {
        Debug.Log($"OnAttack: {context.ReadValue<float>()}");
    }

    #endregion
}

Constructor & Destructor Documentation

InputActions()

InputActions.InputActions

(

)

Constructs a new instance.

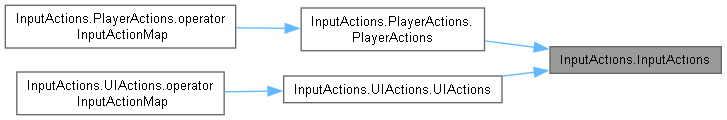

Here is the caller graph for this function:

Member Function Documentation

Contains()

bool InputActions.Contains

(

InputAction

action

)

Disable()

void InputActions.Disable

(

)

Dispose()

void InputActions.Dispose

(

)

Destroys this asset and all associated InputAction instances.

Enable()

void InputActions.Enable

(

)

FindAction()

InputAction InputActions.FindAction	(	string	actionNameOrId,
		bool	throwIfNotFound = false )

FindBinding()

int InputActions.FindBinding	(	InputBinding	bindingMask,
		out InputAction	action )

GetEnumerator()

IEnumerator< InputAction > InputActions.GetEnumerator

(

)

Property Documentation

asset

InputActionAsset InputActions.asset

get

Provides access to the underlying asset instance.

bindingMask

InputBinding? InputActions.bindingMask

getset

bindings

IEnumerable<InputBinding> InputActions.bindings

get

controlSchemes

ReadOnlyArray<InputControlScheme> InputActions.controlSchemes

get

devices

ReadOnlyArray<InputDevice>? InputActions.devices

getset

GamepadScheme

InputControlScheme InputActions.GamepadScheme

get

Provides access to the input control scheme.

See also

UnityEngine.InputSystem.InputControlScheme

JoystickScheme

InputControlScheme InputActions.JoystickScheme

get

Provides access to the input control scheme.

See also

UnityEngine.InputSystem.InputControlScheme

KeyboardMouseScheme

InputControlScheme InputActions.KeyboardMouseScheme

get

Provides access to the input control scheme.

See also

UnityEngine.InputSystem.InputControlScheme

Player

PlayerActions InputActions.Player

get

Provides a new PlayerActions instance referencing this action map.

TouchScheme

InputControlScheme InputActions.TouchScheme

get

Provides access to the input control scheme.

See also

UnityEngine.InputSystem.InputControlScheme

UI

UIActions InputActions.UI

get

Provides a new UIActions instance referencing this action map.

XRScheme

InputControlScheme InputActions.XRScheme

get

Provides access to the input control scheme.

See also

UnityEngine.InputSystem.InputControlScheme

---

The documentation for this class was generated from the following file:

• D:/Projects/Team_Hajen/ICPDEV_Ink/Assets/DeulPie/ExtraInk/Input/InputActions.cs
